Description

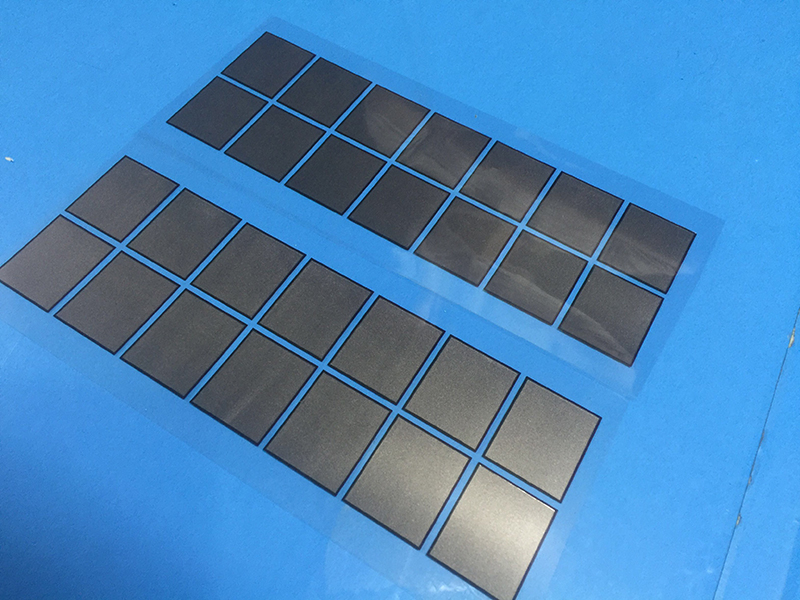

       TIM graphite material is the synthetic graphite with compressible interface material. Graphite is low density which is controlled by special process. During the application, graphite can be compressed like traditional interface material, which provide better wetting and contact to interface.
       It possesses unique functions such as eliminating hot spots, shielding components and reducing skin temperature of electronic devices. It is an ideal thermal management material in limited space.

Features
▪ Can be compressed 60% and better wetting interface
▪ Low density，0.5-0.6g/cm3
▪ Flexible
▪ ROSH Compliance

Application
Smart phone
Telecom
Industrial
Power module, like IGBT, RF device.

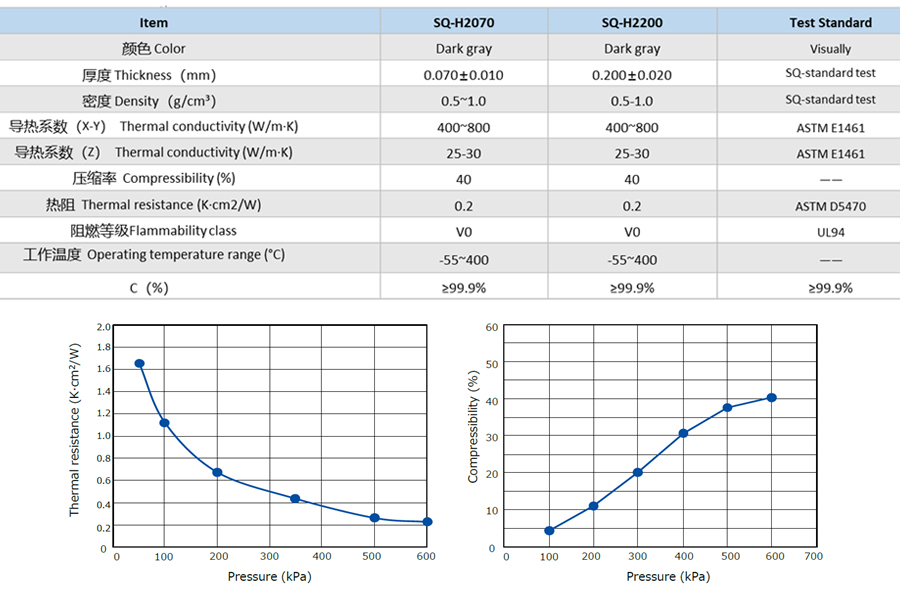

Technical Parameters
